3HP TS4-027-15 (Pump End Only) (TS402715e) Nominal Head: 4 Inches Flow Rate: 27 GPM Number of Stages: 15
Sale

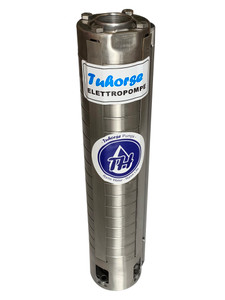

3HP TS4-027-15 (Pump End Only)

Tuhorse
SKU:
TS402715e
US$489.00 US$289.00
(No reviews yet)
Weight:
14.00 LBS
Width:
23.00 (in)
Height:
6.00 (in)
Depth:
6.00 (in)
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

27 GPM rated, 33 GPM Max.

Pump Wet End Only

  • HP: Requires 3HP or larger motor
  • Voltage: N/A
  • Cycle: N/A
  • Operating Amperage: N/A
  • Motor RPM: 3450 RPM
  • Stages: 15
  • Maximum Head(cut off): 480 ft
  • Rated Flow: 27GPM
  • Maximum Flow(0-160ft): 33 GPM
  • Open Flow vs Depth: 30GPM @ 260ft; 25GPM @ 320ft; 20GPM @ 360ft; 15GPM @ 398ft;
  • Suction Port: Center Suction
  • Discharge Port: 1.5 in
  • Built-in Check-valve: Yes, Stainless Steel 304
  • Pump Housing Material: Stainless Steel 304
  • Discharge and Suction Port Material:  Stainless Steel 304
  • Impeller Material: Stainless Steel 304
  • Motor Housing: N/A
  • Motor Top: N/A
  • Motor Bearing / Lubrication: N/A
  • Motor lead: N/A
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: N/A
  • Net Weight: 10 lbs
  • Shipping Weight: 12 lbs
  • Dimensions/Length: 20"(length) x 3.75"(widest diameter)
Warranty
1 Year
