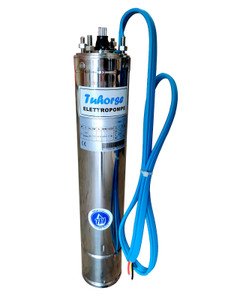

Tuhorse 4" deep well pump motor replacement

4" 3HP Three Phase 460V Motor, Full Stainless Steel

Tuhorse
SKU:
TM4S30T460
US$380.00
US$639.00
(You save US$259.00 )
(No reviews yet)
Weight:
33.00 LBS
Condition:
New
Current Stock:
Adding to cart… The item has been added
Description

Motor only. Control Panel sold separately



  • HP: 3HP
  • Voltage: 460V Three Phase
  • Cycle: 60 Hz
  • Operating Amperage: 5.4 A
  • Motor RPM: 3450 RPM
  • Stages: n/a
  • Maximum Flow: N/A
  • Maximum Head: N/A
  • Typical Flow: N/A
  • Suction Port: N/A
  • Discharge Port: N/A
  • Built-in Check-valve: N/A
  • Motor Top Material: Stainless Steel 304
  • Impeller Material: n/a
  • Motor Enclosure: Stainless steel 304
  • Duty: Continuous or up to 30 restarting cycles / hour
  • Control Box: Three phase power switch with overload protection is required.
  • Net Weight: 30 Lbs
  • Dimensions/Length: 20.5"
  • Shipping Weight: 33Lb
  • Shipping dimensions: Vary



Minimum requirement for operating the motor is a non-fused 3-phase power switch and a 3-phase overload protector / Circuit breaker. The protector / breaker must be the type of those that shut off all 3-phase when one or more phase is overloaded. Do NOT use a fused switch that could burn out one of the phase. Do NOT use three individual 1-Phase breakers. You must use a real 3-phase protector / breaker or a protection device that does not cause missing phase problem.

Warranty
1 Year
