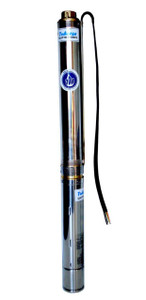

3HP TH4-070-06 230V 3-Phase. Pump-end and Motor
Tuhorse
CAD$820.29
CAD$1,381.54
(You save
CAD$561.25
)
(No reviews yet)
Write a Review
Tuhorse
3HP TH4-070-06 230V 3-Phase. Pump-end and Motor
Rated 70GPM, 95GPM Max.
Complete pump end and motor set. Control box (control panel) is not required, but a three phase power switch with overload protection is required(not included)
Note: This pump is suggested for free flow or low TDH applications, such as low head pumping to a holding tank, a pond or a dripping irrigation system.
- HP: 3HP
- Voltage: 230V Three Phase
- Cycle: 60 Hz
- Operating Amperage: 9.4 A
- Motor RPM: 3450 RPM
- Stages: 6
- Maximum Flow: 95GPM
- Maximum Head: 160ft
- Typical Flow: 90GPM @ 60ft; 80GPM @ 75ft; 70GPM @ 90 ft; 60GPM @ 105 ft; 40GPM @ 125ft
- Suction Port: Center Suction
- Discharge Port: 2 in
- Built-in Check-valve: Yes
- Housing Material: Stainless Steel
- Impeller Material: Thermal Plastic
- Motor Enclosure: Stainless steel
- Duty: Continuous or up to 30 restarting cycles / hour
- Control Box: Control Box (Control Panel) Optional
- Weight: 46.20Lb
- Dimensions/Length: n/a
*Control panel sold separately
Note: We recommend you to use our TDH calculator in selecting a pump for your application
This TH407006T230 is formerly our TH4MA06T230. The pump curve remains the same because they are the same pump. We are in the process changing the model name to reflect the flow rate. 070 stands for 70GPM. The new model numbers help our customers to choose the right pump easier
1 Year
