Solar Pump Control Box, 2HP / 1500W (TSCB1500W)

Solar Pump Control Box, 2HP / 1500W

Tuhorse
SKU:
TSCB1500W
US$590.00
US$1,500.00
(You save US$910.00 )
(No reviews yet)
Weight:
12.00 LBS
Current Stock:
Adding to cart… The item has been added
Description

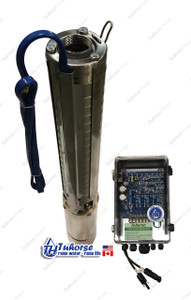

Solar Pump Control Box for 2HP / 1500W for Tuhorse solar pumps

Auto control box specifications:

Optimize pumping efficiency with MPPT according to sunlight condition and
solar panel used
Fully automatic pumping mode through the use of either or both
water level sensors in well and in storage tank
Bypass sensors for application does not require water level monitoring
Manual motor speed adjustment accommodate low-yield-well in
lower head applications
Adjustable timer add time for low-yield-well to recover in automatic mode
Low power, over voltage and over current protections.
Dry run protection in automatic mode
150V nominal input voltage, DC 90V - 180V or AC 120V
Maximum 400Voc (solar panel array open circuit voltage)



Note:

When multiple panels are used, it is recommended to use identical panels in the array
Do not use panel array that exceeds 400volts of Open Circuit Voltage (Voc)
Maximum power of the panel array is 160% of the motor's power rating


Warranty
1 year
