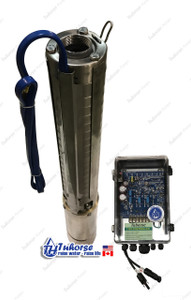

4" 1500W (2HP) 12GPM, 410 feet Max Head, Solar Powered Submersible Deep Well Pump and Control Box Set

Tuhorse
SKU:
4THS12C150V1500
US$1,450.00
US$2,480.00
(You save US$1,030.00 )
(No reviews yet)
Weight:
60.00 LBS
Width:
35.00 (in)
Height:
9.50 (in)
Depth:
15.00 (in)
Current Stock:
Adding to cart… The item has been added

12GPM, 430 foot max(cut off) head

1500 Watts Stainless Steel Impellers Deep Well Pump and Control Box (4THS12C150V1500)

This solar pump is suitable for 150 to 350 feet head (TDH)

Package includes:

4" 1500 Watts(2HP) 3-phase brushless solar motor

Power Input: Solar DC 90 to 220V or AC 110V to 240V 50/60Hz
4" TS401314e 14-stages stainless steel impellers pump-end
Automatic control box, works with solar panel, DC or AC 120/240Volts power, soft start
2 x water level sensor for setting up automatic pumping
2 x 10 ft. MC4 cable w/ M-F connectors, for connecting solar panel to control box
Heat shrink splice kit for watertight connection
Installation guide
1 year warranty (return to BC Canada*)

Performance using 6 x 280W Solar panels(not included in the package)

Production based on 6 hours peak sun daily
Head (ft.) Gallon / min Gallon / day
350 ft. 6 Gal. 2160 Gal
300 ft. 10 Gal 3600 Gal
250 ft. 14 Gal 5040 Gal
150 ft. 18 Gal 6480 Gal



4THS12C150V1500 Solar Water Pump Specifications:

Fit 4" inside diameter and larger well
1500W / 2HP, 150V-DC nominal operating power or AC 110 to 240V
1.25" NPTF discharge (outlet)
12GPM rated, 18GPM Max.
14 Stages stainless steel impellers design
Pump Diameter, length: 3.9" x 34.5" (95mm x 880mm)
Pump Net weight: 33Lb (15kg), excluding control box
Package Weight: 60Lb / 27kg, including control box
Soft start, DC solar power/AC power converted to 3-phase to power the pump motor
Maximum submersion - 150 feet

Auto control box specifications:

Optimize pumping efficiency with MPPT according to sunlight condition and
solar panel used
Fully automatic pumping mode using water level sensor(s)
Bypass sensors for application that does not require water level monitoring
Low power protection, overload protection
Dry run protection in automatic mode
Maximum input withstand Voc = 420V (solar panel array open circuit voltage)
Maximum input current 13 amps

Duty and Fee:

We prepaid duty and customs fee for all our USA buyers in the 48 States when goods entering from Canada to the USA. This is part of our service excellence to ensure that USA buyers will not receive an unexpected bill. Buyers are responsible for taxes, if there is any.  For your information, we have not seen our USA customers are required to pay taxes for an order that is under $2500. We don't seems have seen taxes were charged for any orders, but please consult your local governments for tax detail if the order is over $2500.





1 year warranty (return to BC Canada*) Note: Tuhorse full solar pump kits with solar panel offer two years warranty. Consider to choose from a full kit SKUs to buy.
